●The spindle move along X/Z axis and worktable is fixed
●the machine have turn-mill function with power head
●Suitable for machining short shaft and disc type parts
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING
Machine tool structure diagram |
Motor spindle 7.5kw |
Add power head for milling and drilling process |
Using gang tool post, but also add power head. |

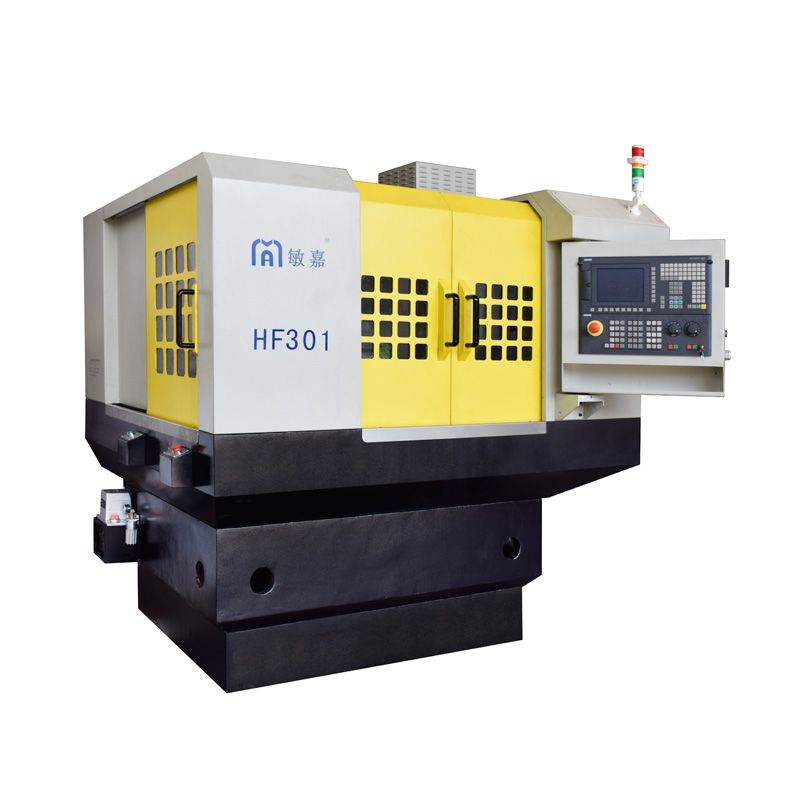

| Model | HF301 | |
| Capacity | ||
| Max. turning diameter over bed | mm | φ600 |
| Max. turning diameter over support | mm | φ160 |
| Max. machining length | mm | 200 |
| Spindle | ||
| Number of spindle | mm | 1 |
| Spindle bore with draw-tube | mm | φ52 |
| Max. spindle speed | r/min | 5000 |
| Distance of spindle center to support | mm | 80 |
| Power of spindle motor | KW | 7.5 |
| Travel | ||
| X/Z axis travel | mm | 750/200 |
| Others | ||
| Weight | KG | 5000 |
| Machine size(L×W×H) | mm | 2020×1900×1927 |
STANDARD CONFIGURATION：
GSK988T control system
Motor spindle of workpiece spindle
Coolant system
Gang tool post
Cabinet heat exchanger
Automatic lubrication system
Dia. 8″hydraulic chuck
Enclosed guard
OPTIONAL CONFIGURATION：
Simens 828D control system
Hollow hole rotary cylinder
Automatic chip conveyor
Specialized fixture
Power head for tapping
GSK988T control system
Motor spindle of workpiece spindle
Coolant system
Gang tool post
Cabinet heat exchanger
Automatic lubrication system
Dia. 8″hydraulic chuck
Enclosed guard
OPTIONAL CONFIGURATION：
Simens 828D control system
Hollow hole rotary cylinder
Automatic chip conveyor
Specialized fixture
Power head for tapping
