SWM1505 CNC External Thread Grinder

-External Thread -Circular INQUIRY

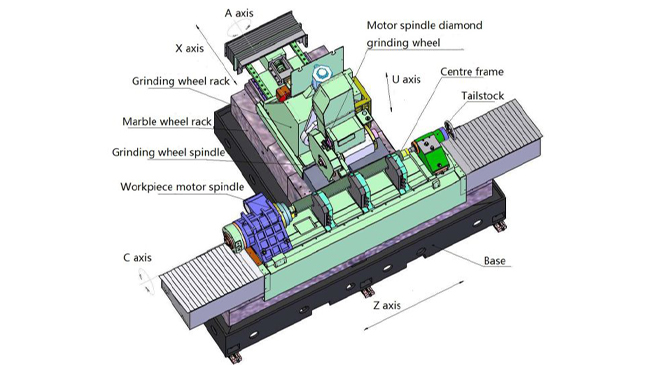

●The machine adopt T type mineral casting stand.

●The machine grinding wheel can finish external thread with V and
trapezoid thread type,such as ball screw ,worm shaft,rolling tool,steering component.

●Turntable set up lead angle A-axis ±25 for grinding large angel and pitch thread with automatic , optional SWM1510A lead angle +20°~-160°

●Wearing capacity with automatic compensation(grinding amount 0.01-0.02mm for one time)


PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

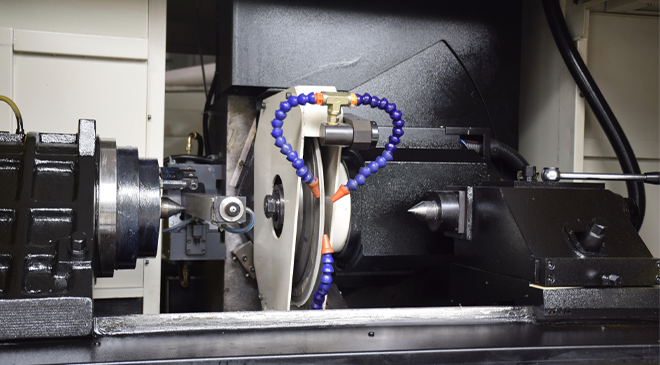

Inspect thread start point for grinding with measuring unit

Inspect thread start point for grinding with measuring unit

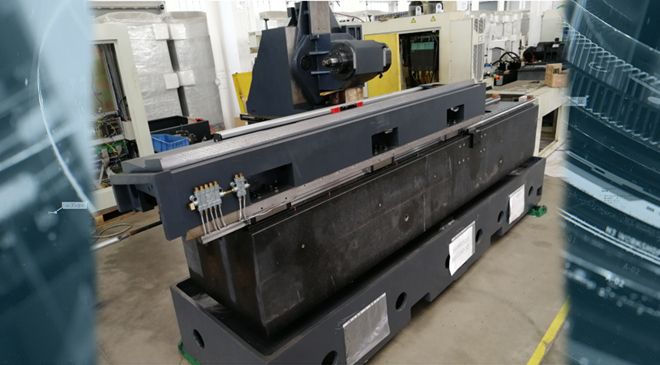

T type mineral casting stand

T type mineral casting stand

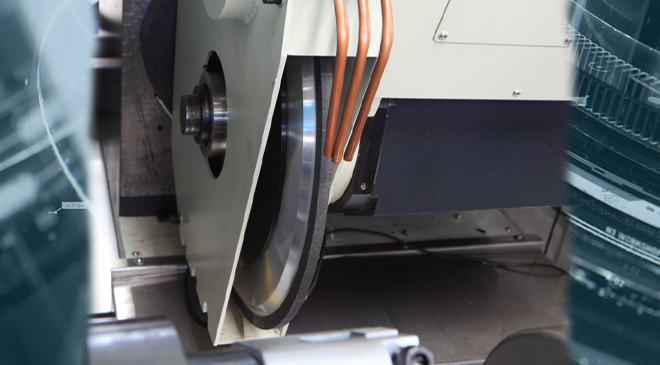

CBN grinding wheel

CBN grinding wheel









Capacity
SWM1503SWM1505SWM1510SWM1520
Max.length  of  grinding    threadmm30050010002000
Max.grinding  diametermm350350350350
Max.distance    between  centermm32052012002200
Max.workpiece  weightkg50505050
Max.lead  angle
25°25°25°25°
Spindle




Grinding  wheel  size(ODxTHxlD)mmΦ500/10-25/Φ305H6Φ500/10-25/Φ305H6Φ500/10-25/Φ305H6Φ500/10~25/Φ305H6
Grinding  wheel  spindle    speedmin-150-300050-300050-300050-3000
Grinding  wheel  motor    powerkw7.57.57.57.5
Dressing wheel    size(ODxTHxlD)mmΦ80xΦ25x30Φ80xΦ25x30Φ80xΦ25x30Φ80xΦ25x30
Dressing wheel    Max.spindle  speedmin-110000100001000010000
Straight  axis




X/Z  axis travelmm350/500350/750350/1200350/2250
Feed ratem/min8888
Machining  precision




Grinding  trapezoid  screwmm5 levels(accord  with std.JB/2886-2008)
Grinding  ball screwmmP2 levels   (accord  with sld.GB/T17587.3-1998)
Tooth  surface  roughnessµmRa0.4
Other


Total  powerkw20
Machine  weightT8.510.51212
Machine  size(L/W/H)mm3300x3000x22002900x3400x2800                         2800x4100x26003400x6200x3800
STANDARD CONFIGURATION:
Siemens 828D control system
Heidenhain scales X/Z axis
Heidenhain Circular grating of workpiece spindle
Cutting fluid filtration system
Spindle coolant system
Compressed air drying device
Grinding spindle inverter
Cabinet air condition
Automatic lubrication system
Automatic suction oil fog device
Electronic hand-wheel
Steady rest
Heart-shaped clamping
Tailstock
Balancing arbor

OPTIONAL CONFIGURATION:
Grinding wheel dresser of trapezoidal screw
Mold diamond grinding wheel and dishing diamond grinding wheel
Grinding wheel balancing device
Constant temperature coolant system for cutting fluid

Ball screw and steering rod  Rolling tool

                                                      Ball screw and steering rod                                                                 Rolling tool



Worm shaft

                                                                                                                                          Worm shaft
