VMK324C CNC Vertical Complex Grinder

CNC Vertical Multi-Process Grinding Machine INQUIRY

l  The machine have multi-processing capability and high accuracy of grinding ID, OD and end face, optional inner gear.



l  The design of honeycomb Tubular type machine bed and cross guideway structure for improving the higher rigidity and stability.



l  External grinding wheel fixed (VMK325 optional inner gear grinding wheel) and 8pcs internal grinding wheels for different diameter in ATC.



l  X/Y/Z axis follow high precision scale to improve Repetition accuracy when moving.


PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

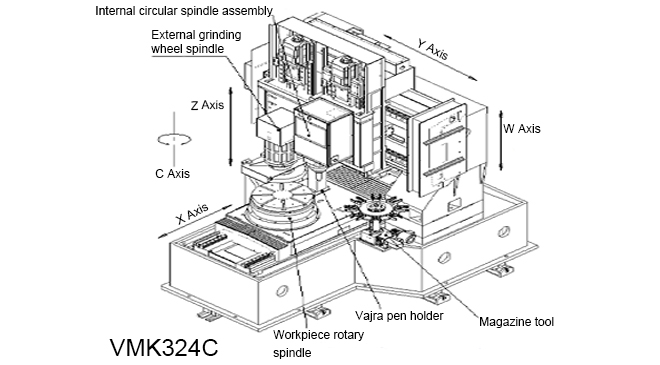

Machine  structure

Machine  structure

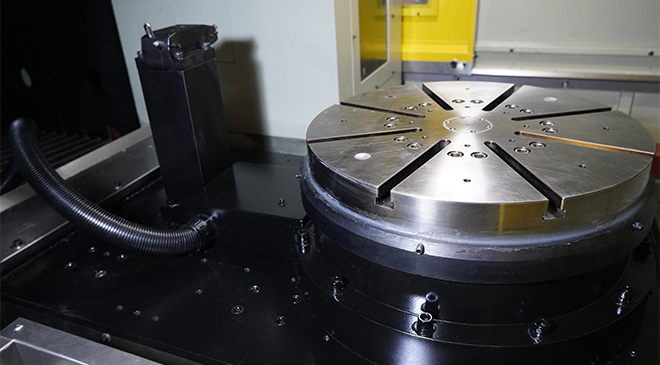

Turntable with grating scale to improvce precision

Turntable with grating scale to improvce precision

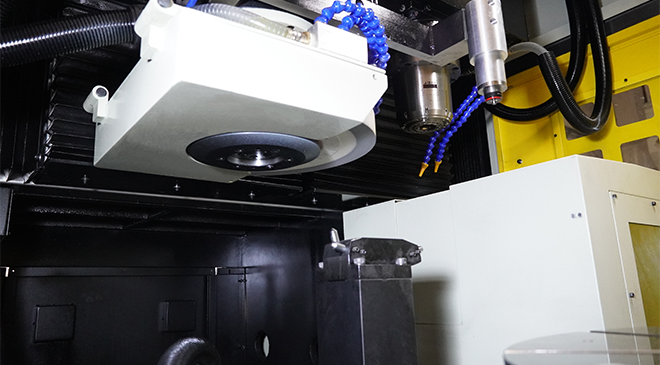

8-station Magazine tool

8-station Magazine tool

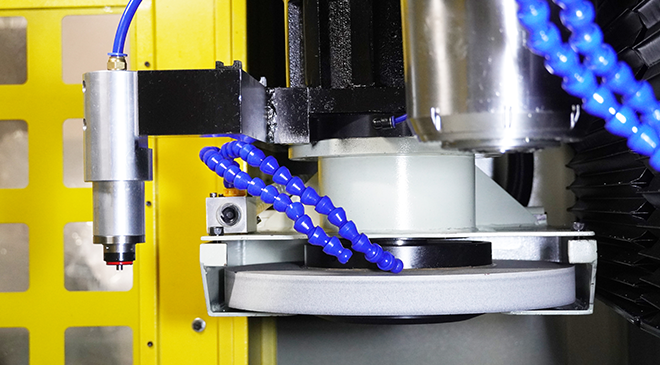

Positioning probe for grinding wheel

Positioning probe for grinding wheel




ItemUnitVMK324CVMK325B
Process CapacityGrinding diametermm
66-500100-1000
Max. grinding lengthmm300350
Turntable diametermmØ500Ø1000
Machining accuracyTooth root arc consistencymm0.005
Grinding groove
Tooth indexing error°0.001
Roundnessmm0.003
Internal grinding spindle
Cylindricitymm0.002/100
Flatnessmm0.0025/30
X AxisRapid speedmm/min100005000
X Axis travelmm750750
Min. Feed ratemm0.0010.001
Grating scale
yesyes
Y AxisRapid speedmm/min100005000
Y Axis travelmm550750
Servo motorNm1111
Min. Feed ratemm0.0010.001
Grating scale
yesyes
Z AxisRapid speedmm/min100005000
Z Axis travelmm350370
Servo motorNm2727
Min. Feed ratemm0.0010.001
Grating scale
yesyes
W AxisRapid speedmm/min100005000
Z Axis travelmm350370
Servo motorNm2727
Min. Feed ratemm0.0010.001
Grating scale
yeswithout

Workpiece spindle

C Axis

Rated torque of torque motornm319688
Spindle motor powerkw4.964.36
Spindle speedrpm10075
Turntable bearing capacityKg≤750≤1500
Encoder
yesyes

Internal gear spindle

(VMK325B)

Max. Spindle speedmin-1/80001FT7084-5WH71-1CA2(SIEMENS)
Motor powerkw/15.1
Rated torqueNm/32
Drive beltmm/AT5
Grinding wheel shaft lubrication
/Oil & gas
Internal circular spindleMax. spindle speedRpm1800018000
Rated powerkw2020
Spindle taper
HSKA63HSKA63
Lubrication type
greasegrease
Central water outlet
yesyes
Coolant system/  tankTank capacityL800
Max. flow rateL/min200
Filter type
Magnetic separator + paper tape filter
Magazine toolTool number
8pcs
Max. tool shank weightKg8
max. tool shank lengthmm250
Probe systemOne way repetitionmm≤0.001
Signal transmission method
Wireless
Can be used in tooth profile, integrated on the shank.
Machine specificationMachine size (L×W×H)mm2600*2700*27003150*2700*3100
Floor space (L×W)mm24100*27003150*2700
Machine tool air pressureMpa≥0.6≥0.6
Total installed capacitykVA7560
Machine weightt1116


STANDARD CONFIGURATION:
Siemens 828D control system
External grinding wheel spindle
Internal grinding wheel spindle
Automatic lubrication systems
Compressed air dryer
Spindle cooling system.
Cutting fluid filtration system
Cabinet air condition
Automatic lubrication system
Oil mist absorber
electromagnetic chuck
Positioning probe for grinding wheel

OPTIONAL CONFIGURATION:
Inner gear grinding spindle
Radio probes
Anti-air range collision avoidance


sample-1

sample-2
