AM520F-16 Multi-spindle VMC

-automatic turss hand transfer INQUIRY

●16-spindles drilling and milling work together, 4x4 spindle array type (Optional tapping function )

●Electric Rotary table, one side loading workpiece ,one side machining (optinal automatic loading -unloading)

●Product in: compressor bearings, cylinder, linear guide slider, car connecting rod, bathroom faucet for small and medium size parts.


PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

Machine tool structure diagram

Machine tool structure diagram

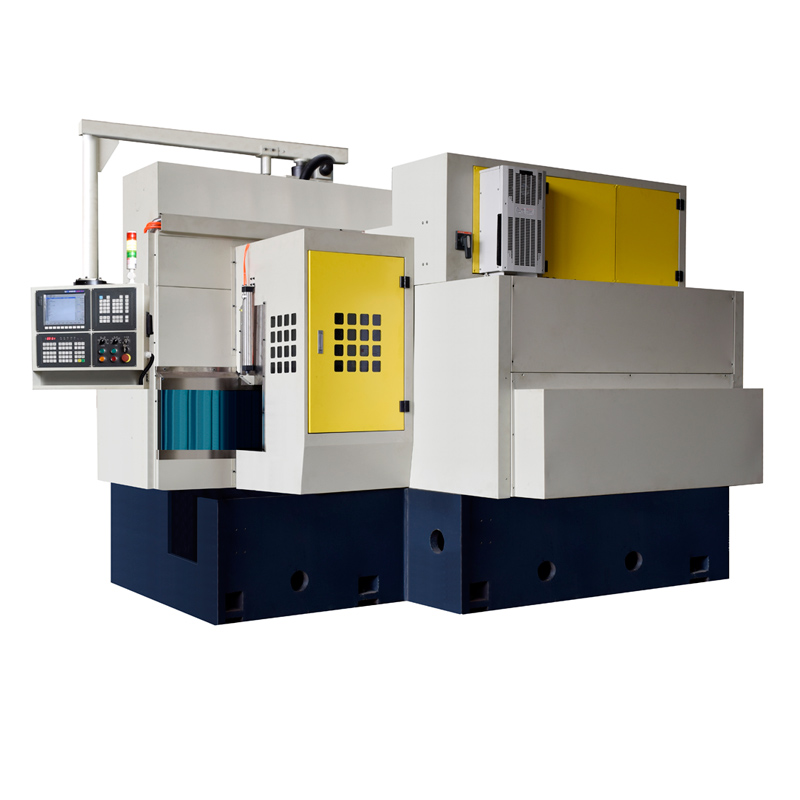

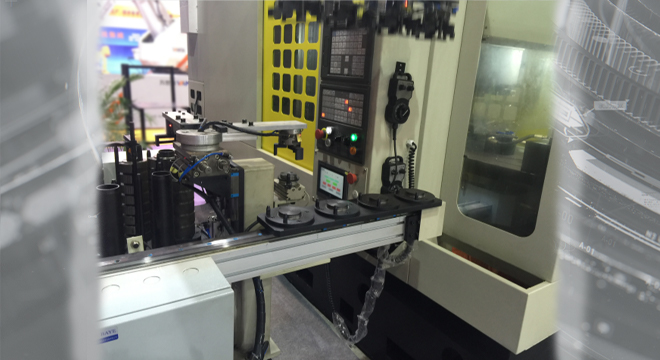

Actual appearance of the machine1



Electric Rotary working table

Electric Rotary working table









Model
AM520F-16
Capacity

Worktable sizemm1000*600
Max. loading worktable KG400
Rotary table with equaling typemm2
Spindle

Spindle nose to table distancemm125-525
Spindle center to column guideway distancemm 430+140+140+140
Number of spindle
16
Spindle mount
ER40
Drilling diametermm16
Power of spindle motor KW11
Max.spindle speedrpm3500
Spindle arrangement
4*4
Travel

X/Y/Z axis positioning accuracymm±0.015
X/Y/Z axis repeatability positioning accuracymm±0.01
X/Y/Z axis travelmm200/560/400
X/Y/Z axis rapid feed    m/min16/16/10
Other

WeightKG6500
Machine size(L×W×H)mm1500×3100×2800


Model
AM520F-16
Capacity

Worktable sizemm1000*600
Max. loading worktable KG400
Rotary table with equaling typemm2
Spindle

Spindle nose to table distancemm125-525
Spindle center to column guideway distancemm 430+140+140+140
Number of spindle
16
Spindle mount
ER40
Drilling diametermm16
Power of spindle motor KW11
Max.spindle speedrpm3500
Spindle arrangement
4*4
Travel

X/Y/Z axis positioning accuracymm±0.015
X/Y/Z axis repeatability positioning accuracymm±0.01
X/Y/Z axis travelmm200/560/400
X/Y/Z axis rapid feed    m/min16/16/10
Other

WeightKG6500
Machine size(L×W×H)mm1500×3100×2800


STANDARD CONFIGURATION:
GSK218 control system
Automatic lubrication system
Cooling system
Cabinet air condition
Automatic chip
Hydraulic rotary table

OPTIONAL CONFIGURATION:
SYNTEC EZ4 control system
FANUC 0i MD control system
Siemens 808D control system
Tapping device
Automatic fixture
Servo type spindle motor

Flange base    Flange1

Flange2    Flange3

Flange4
