WNM1505 CNC Grinder Center

Complex External -Internal-Thread INQUIRY

●This machine can grind cylindrical, inner hole, thread for complex precision workpiece.

●3- station hydraulic turntable can change 3 type different grinding wheel automatically

-Complete machining in one operation

-Grinding process optimisation

-Reduction of machining time

●All axis install grating scale to improve precision when moving








PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING


Machine tool structure diagram

Machine tool structure diagram

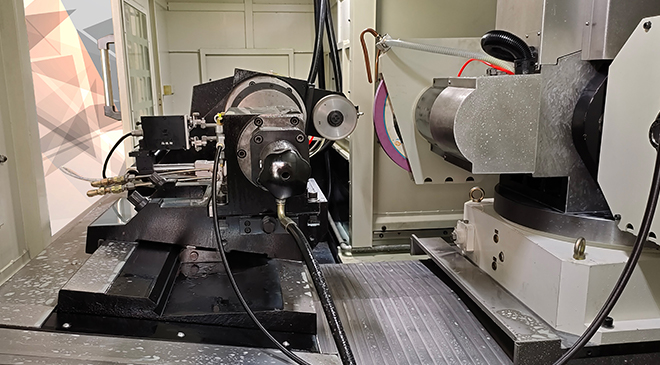

3- station hydraulic turntable with different wheel

3- station hydraulic turntable with different wheel

Automatic tool setting probeAutomatic tool setting probe

Dressing for forming wheel

Dressing for forming wheel











Model
WNM1505
Capacity
Max. grinding diametermm350
Max. Grinding length mm500
Grinding inner hole diameter mmφ15-φ150
External thread grinding diametermmφ10-φ300
Max.lead angle (A axis)
±25°
B axis min. angle (Turntable)
90°(4-station)
Spindle

C axis spindle speed rpm0-310
C axis spindle motor powerkw11
External grinding wheel spindle speedrpm3500
External grinding wheel spindle motorkw7.5
Internal grinding wheel spindle speedrpm24000
Internal grinding wheel spindle powerkw5.5
External thread grinding spindle speedrpm5000
External thread grinding spindle powerkw5.5
Diamond dressing spindle speedrpm10000
Diamond dressing spindle powerkw1.5
Travel
 X/Z axis travel mm350/700
Rapid feed X/Zm/min8/10
Other
Total powerKW47.5
WeightT15
Machine Size(L×W×H)mm3900*3000*2900





Model
WNM1505
Capacity
Max. grinding diametermm350
Max. Grinding length mm500
Grinding inner hole diameter mmφ15-φ150
External thread grinding diametermmφ10-φ300
Max.lead angle (A axis)
±25°
B axis min. angle (Turntable)
90°(4-station)
Spindle

C axis spindle speed rpm0-310
C axis spindle motor powerkw11
External grinding wheel spindle speedrpm3500
External grinding wheel spindle motorkw7.5
Internal grinding wheel spindle speedrpm24000
Internal grinding wheel spindle powerkw5.5
External thread grinding spindle speedrpm5000
External thread grinding spindle powerkw5.5
Diamond dressing spindle speedrpm10000
Diamond dressing spindle powerkw1.5
Travel
 X/Z axis travel mm350/700
Rapid feed X/Zm/min8/10
Other
Total powerKW47.5
WeightT15
Machine Size(L×W×H)mm3900*3000*2900


STANDARD CONFIGURATION:
Siemens 828D control system
External thread grinding spindle
Internal hole grinding spindle
cylindrical grinding spindle
Heidenhain X/Z axis grating ruler
Heidenhain round grating ruler of C axis
Cutting fluid filtration system
Oil cooler of spindle
Compressed air dryer
Oil mist absorber
Manual tailstock
Automatic tool setting probe

OPTIONAL CONFIGURATION:
Grinding wheel balancing instrument

Samples    Samples2
