KM-1107 Swiss Type Automatic Lathe

-sliding headstock -3 axis (X/Z/Y) INQUIRY

●Machining  dia.1-7mm,length 190mm small workpiece.

●The machine can make small parts with guide bush.

● 2pcs live tool on Y axis to drilling /tapping/milling.


PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

Controllable linear axis X/Z/Y

Controllable linear axis X/Z/Y


2pcs live tool on Y axis/5pcs turning tool/3 pcs front drilling tool

2pcs live tool on Y axis/6pcs turning tool/4 pcs front drilling tool

It can add guide bush to make long shaft

It can add guide bush to make long shaft


Sliding headstock move on Z axis

Sliding headstock move on Z axis










Item

KM-1107

Control system

LNC T5800

Spindle

Max. machining diameter

Ф7mm

Max. turning length(one   process)

190mm

Spindle speed

50-6000r/min

Motor power

1.5kW

Feed

X axis travel

85mm

Y axis travel

170mm

Z axis travel

230mm

X axis rapid feed speed

18000mm/min

Y axis rapid feed speed

18000mm/min

Z axis rapid feed speed

18000mm/min

Tool

Rows Tool

12pcs

Turning tool

6pcs

Tool size

8×8mm

Front drilling tool

4pcs

Number of live tool

2pcs

Live tool motor

0.4kW

Live tool speed

5000-8000r/min

Live tool chuck size

ER11

Live tool drilling size

Ф6mm

Live tool tapping size

M6

Power

Rated voltage

3 phase AC380V

Rated frequency

50Hz

Machine dimension

L×W×H

1500×1100×1800mm

Weight (N.W./G.W.)

1000kg



Item

KM-1107

Control system

LNC T5800

Spindle

Max. machining diameter

Ф7mm

Max. turning length(one   process)

190mm

Spindle speed

50-6000r/min

Motor power

1.5kW

Feed

X axis travel

85mm

Y axis travel

170mm

Z axis travel

230mm

X axis rapid feed speed

18000mm/min

Y axis rapid feed speed

18000mm/min

Z axis rapid feed speed

18000mm/min

Tool

Rows Tool

12pcs

Turning tool

6pcs

Tool size

8×8mm

Front drilling tool

4pcs

Number of live tool

2pcs

Live tool motor

0.4kW

Live tool speed

5000-8000r/min

Live tool chuck size

ER11

Live tool drilling size

Ф6mm

Live tool tapping size

M6

Power

Rated voltage

3 phase AC380V

Rated frequency

50Hz

Machine dimension

L×W×H

1500×1100×1800mm

Weight (N.W./G.W.)

1000kg


Standard Configuration:
LNC T5800 control system
Spindle servo motor
Air pressure collet
Cooling pump
Automatic lubrication
Chip car

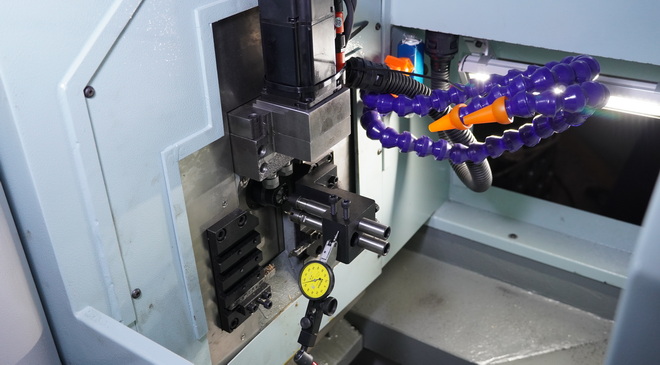

Two live tool on Y axis
Workpiece receiver

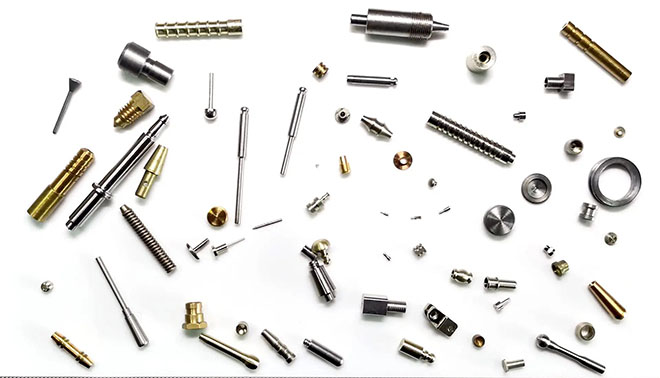

Sample 1Sample 2Sample 3Sample 4
