●Machining dia.1-20mm,length 120mm workpiece.
●The machine use two-channel system for controlling multi-spindle.
●The inner and outer diameters of workpiece can be processed simultaneously.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING
Machining dia.1-20mm,length 120mm workpiece |
The inner and outer diameter of workpiece can be processed simultaneously. |
The spindle box is fixed, and tool saddle can move 170mm on Z axis |
SYS1: 4pcs turning tool with milling SYS2: 6pcs gang tool (on tapping ) |
| Model | Two-channel | KM-T20 | |
| Capacity | Control system | LNC5850(Two channel) | |
| Max. machining dia. | 20mm | ||
| Max. machining length | 70mm(Guide bush) | ||
120mm(Non-guide bush) | |||
| Spindle speed | 50-8000r/min | ||
| Spindle power | 2kW | ||
| Travel | System1 | X1 axis travel | 55mm |
| X2, X3 travel | 40mm,35mm | ||
| Z1 axis travel | 120mm | ||
| X1/X2/X3 axis feedrate | 12000mm/min | ||
| Z1 axis feedrate | 16000mm/min | ||
| System2 | X4 axis travel | 350mm | |
| Z2 travel | 150mm | ||
| X4 axis feedrate | 12000mm/min | ||
| Z2 axis feedrate | 16000mm/min | ||
| Tapping axis | Tapping speed | 50-5500 r/min | |
| Tapping motor | 750W | ||
| Tool | System 1 independent type | 4 pcs | |
| System 1 tool size | 8×8mm | ||
| System 2 gang tool | 6 pcs | ||
| System 2 gang tool | Φ16 | ||
| Tapping collet type | ER11 | ||
| Power | Power voltage | 380V/50HZ/3PH | |
| Other | Machine size L×W×H | 1500×900×1630mm | |
| Machine weight | 1300kg | ||
| Model | Two-channel | KM-T20 | |
| Capacity | Control system | LNC5850(Two channel) | |
| Max. machining dia. | 20mm | ||
| Max. machining length | 70mm(Guide bush) | ||
120mm(Non-guide bush) | |||
| Spindle speed | 50-8000r/min | ||
| Spindle power | 2kW | ||
| Travel | System1 | X1 axis travel | 55mm |
| X2, X3 travel | 40mm,35mm | ||
| Z1 axis travel | 120mm | ||
| X1/X2/X3 axis feedrate | 12000mm/min | ||
| Z1 axis feedrate | 16000mm/min | ||
| System2 | X4 axis travel | 350mm | |
| Z2 travel | 150mm | ||
| X4 axis feedrate | 12000mm/min | ||
| Z2 axis feedrate | 16000mm/min | ||
| Tapping axis | Tapping speed | 50-5500 r/min | |
| Tapping motor | 750W | ||
| Tool | System 1 independent type | 4 pcs | |
| System 1 tool size | 8×8mm | ||
| System 2 gang tool | 6 pcs | ||
| System 2 gang tool | Φ16 | ||
| Tapping collet type | ER11 | ||
| Power | Power voltage | 380V/50HZ/3PH | |
| Other | Machine size L×W×H | 1500×900×1630mm | |
| Machine weight | 1300kg | ||
1. LNC5850 control system(two-channel)
2.Pneumatic unit
3.Automatic centerlized lubrication unit
4. Spindle coolant
5. Workpiece receiver
6. 4-station turning tool(one choice milling head)
7. 6-station cross drilling unit(including one power head tapping )
8.chip car
Optional :

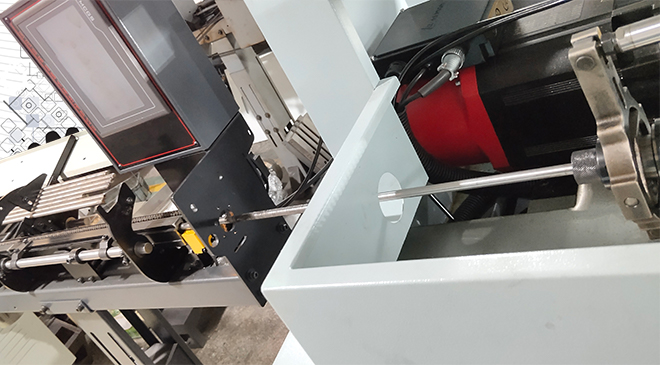

Automatic bar feeder
SYNTEC 22TB control system
2.Pneumatic unit
3.Automatic centerlized lubrication unit
4. Spindle coolant
5. Workpiece receiver
6. 4-station turning tool(one choice milling head)
7. 6-station cross drilling unit(including one power head tapping )
8.chip car
Optional :
Automatic bar feeder
