SMK304 CNC Internal Thread Grinder

-Grinding for Internal Thread and circular INQUIRY

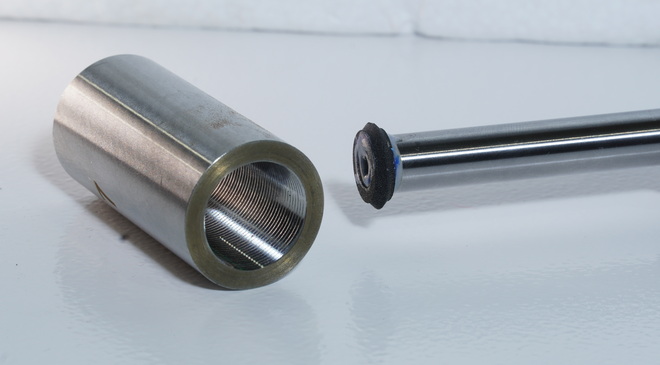

 The grinding machine is professional to processing in ball nut of Internal thread, cylindrical and ending surface for once clamping.

T type mineral casting frame get better in vibrating and heat distortion.

The diamond dressing wheel install on Z axis, and let grinding wheel dressing amount can be compensated automatically

●A axis motor let internal grinding wheel to swing angle +-25° by automatic program.





PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

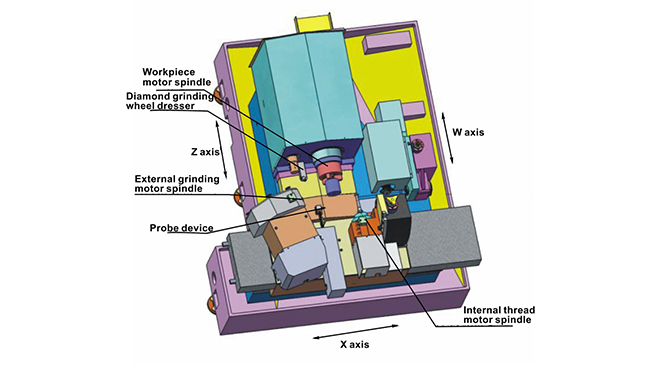

Machine tool structure diagram

Machine tool structure diagram

T type natural granite base stand

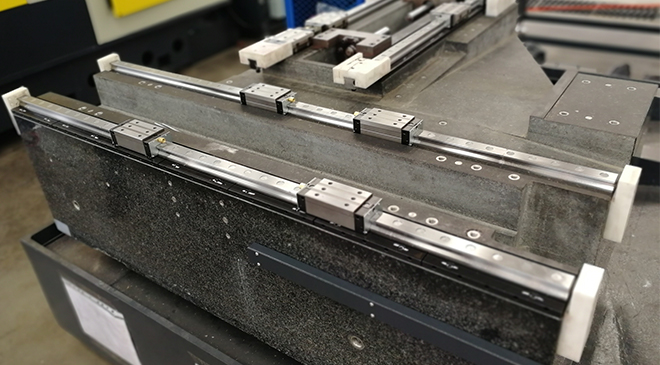

T type  granite base stand,keep high precision and small expansion

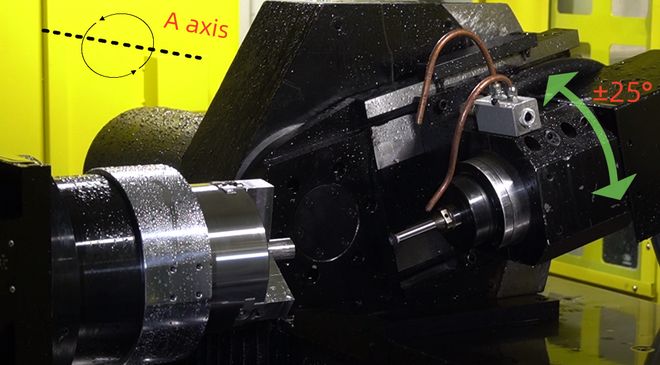

A axis motor let internal grinding wheel to swing angle +-25° by automatic program.

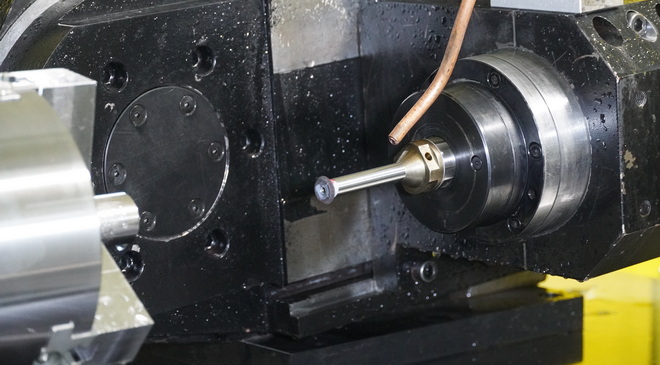

Internal thread grinding wheel is motor spindle , speed 500-24000rpm.




When using diamond wheel to dressing grinding wheel ,X axis and Z axis will interpolation dressing together.




Spindle runout 0.003mm






ltem
UnitParameter
CapacityMax.grinding internal thread diametermmΦ12~Φ60
Max.grinding internal thread   lengthmm150
Max.grinding internal diametermmΦ20~Φ120
Max.grinding internal lengthmm150
Max.lead angledegreeRight 25° Left 25°
Processing accuracyTolerance on one pitch (trapezoidal internal thread)mm0.002
Tolerance on 25mm lengthmm0.003
Cumulative tolerance on 50mm   lengthmm0.006
Consistency error in pitch   diametermm0.004
Thread surface roughnessμmRa0.32
Outer cylindricitymm0.004
Outer roughnessμmRa0.4
Roughness of the flange end   faceμmRa0.63
External grinding wheel spindleMax.spindle speedrpm3000
Rated powerkW5.5
Spindle cooling method
Oil cooling
External grinding wheel sizemmφ400X32Xφ127
Internal thread   grinding wheel speedMax.spindle speedrpm36000
Rated powerkW8.5
Spindle sleeve outer diametermmΦ120
Spindle lubrication method
Oil mist lubrication
Spindle cooling method
Oil cooling
Grinding wheel material
CBN/ White corundum
Spindle axial runout, radial   runout, cross-sectional runoutmm0.003
Diamond wheel   speedWheel size(OD×ID×TH)mmΦ100×Φ25×30
Max.spindle speedrpm10000
Spindle lubrication method
grease lubrication
Rated powerkW1.5
Spindle cooling method
Oil cooling
Workpiece   spindleSpindle speedrpm0~100
Rated torqueNm60
Rated powerkW9.5
Min.angle unitdegree0.001
Spindle lubrication method
grease lubrication
Spindle cooling method
oil cooling
Spindle axial runout, radial   runout, cross-sectional runoutmm0.003
Rotary axis C positioning   accuracy14
Rotary axis C repeated   positioning accuracy10
Spindle can be used for center   flushing

X/Z axisMachine travel (X/Z)mm6500/350
Min.feedmm0.001
Linear axis X positioning   accuracymm0.004
Linear axis X repeated   positioning accuracymm0.003
OtherMotor powerKw45
Air power requiredMP0.5
Cooling tank volumeL600
Machine   size(Length*width*height)mm3100/2000/2410
Machine weightT6


STANDARD CONFIGURATION:
Siemens828D control system
Internal thread grinding spindle
Cylindrical grinding spindle
C/X/Z axis grating ruler
Spindle Oil cooler
Compressed-air dryer
Oil mist absorber
Automatic tool setting probe
Diamond grinding wheel dresser
Hydraulic three-jaw chuck
Automatic lubrication system
Cabinet air condition
Cutting fluid filtration device


OPTIONAL CONFIGURATION:
Cutting fluid colder
