●La máquina puede taladrar y fresar con 6/8/12/16 husillos al mismo tiempo de trabajo(función de encintado opcional).
Accesorio personalizado para la pieza de trabajo.
●Gantry-tipo estructura, eje X con gran recorrido.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING
Diagrama de la estructura de la máquina herramienta | h Fijación hidráulica con tamaño personalizado |

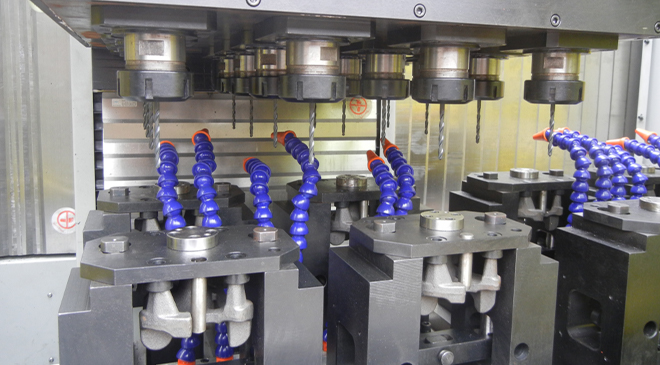

Multihusillo trabajando juntos |
Mesa giratoria CNC con eje A |
 |  |
| Model | AM850F-6 | AM850F-8 | AM850F-12 | AM850F-16 | |||
| Capacity | |||||||
| Worktable size | mm | 560×1260 | 560×1260 | 560×1260 | 560×1260 | ||
| Max. loading worktable | kg | 400 | 400 | 400 | 400 | ||
| T-solt (qty-width*spacing) | mm | 4-18×140 | 4-18×140 | 4-18×140 | 4-18×140 | ||
| Spindle | |||||||
| Spindle nose to table distance | mm | 115-515 | 115-515 | 115-515 | 115-515 | ||
| Spindle center to column guideway distance | mm | 275-695 | 275-695 | 275-695 | 275-695 | ||
| Number of spindle | 6 | 8 | 12 | 16 | |||
| Spindle mount | ER40 | ER40 | ER40 | ER40 | |||
| Drilling diameter | mm | 2—20 | 2—20 | 2—20 | 2—20 | ||
| Power of spindle motor | kW | 6×3.7 | 2×11 | 4×7.5 | 11 | ||
| Max.spindle speed | rpm | 3500 | 3500 | 3500 | 3500 | ||
| Distance of spindle center | mm | 260×240 | 230×230 | 160×240 | 140×140 | ||
| Spindle arrangement | 2×3 | 2×4 | 3×4 | 4×4 | |||
| Travel | |||||||
| X/Y/Z axis positioning accuracy | mm | 0.025/0.022/0.022 | 0.025/0.022/0.022 | 0.025/0.022/0.022 | 0.025/0.022/0.022 | ||
| X/Y/Z axis repeatability positioning accuracy | mm | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | ||
| X/Y/Z axis travel | mm | 1000/320/400 | 900/320/400 | 900/320/400 | 1000/320/400 | ||
| X/Y/Z axis rapid feed | m/min | 16/16/8 | 16/16/8 | 16/16/8 | 16/16/8 | ||
| Other | |||||||
| Weight | kg | 5200 | 5700 | 6150 | 5500 | ||
| Machine size(L×W×H) | mm | 3470×2250×2400 | 3470×2250×2400 | 3470×2250×2400 | 3470×2250×2400 | ||
| Model | AM850F-6 | AM850F-8 | AM850F-12 | AM850F-16 | |||
| Capacity | |||||||
| Worktable size | mm | 560×1260 | 560×1260 | 560×1260 | 560×1260 | ||
| Max. loading worktable | kg | 400 | 400 | 400 | 400 | ||
| T-solt (qty-width*spacing) | mm | 4-18×140 | 4-18×140 | 4-18×140 | 4-18×140 | ||
| Spindle | |||||||
| Spindle nose to table distance | mm | 115-515 | 115-515 | 115-515 | 115-515 | ||
| Spindle center to column guideway distance | mm | 275-695 | 275-695 | 275-695 | 275-695 | ||
| Number of spindle | 6 | 8 | 12 | 16 | |||
| Spindle mount | ER40 | ER40 | ER40 | ER40 | |||
| Drilling diameter | mm | 2—20 | 2—20 | 2—20 | 2—20 | ||
| Power of spindle motor | kW | 6×3.7 | 2×11 | 4×7.5 | 11 | ||
| Max.spindle speed | rpm | 3500 | 3500 | 3500 | 3500 | ||
| Distance of spindle center | mm | 260×240 | 230×230 | 160×240 | 140×140 | ||
| Spindle arrangement | 2×3 | 2×4 | 3×4 | 4×4 | |||
| Travel | |||||||
| X/Y/Z axis positioning accuracy | mm | 0.025/0.022/0.022 | 0.025/0.022/0.022 | 0.025/0.022/0.022 | 0.025/0.022/0.022 | ||
| X/Y/Z axis repeatability positioning accuracy | mm | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | 0.015/0.012/0.012 | ||
| X/Y/Z axis travel | mm | 1000/320/400 | 900/320/400 | 900/320/400 | 1000/320/400 | ||
| X/Y/Z axis rapid feed | m/min | 16/16/8 | 16/16/8 | 16/16/8 | 16/16/8 | ||
| Other | |||||||
| Weight | kg | 5200 | 5700 | 6150 | 5500 | ||
| Machine size(L×W×H) | mm | 3470×2250×2400 | 3470×2250×2400 | 3470×2250×2400 | 3470×2250×2400 | ||
STANDARD CONFIGURATION：
GSK218 control system
Automatic lubrication system
Cooling system
Cabinet air condition
Automatic chip cleaner
OPTIONAL CONFIGURATION：
SYNTEC EZ4 control system
FANUC 0i-mate MD control system
Siemens 808D control system
Tapping device
Automatic fixture
Servo type spindle motor
GSK218 control system
Automatic lubrication system
Cooling system
Cabinet air condition
Automatic chip cleaner
OPTIONAL CONFIGURATION：
SYNTEC EZ4 control system
FANUC 0i-mate MD control system
Siemens 808D control system
Tapping device
Automatic fixture
Servo type spindle motor
