This high cost-effective grinding for cylindrical parts.
The workpiece can keep after grinding, Roundness 1.5 um, surface roughness Ra.0.32.
Automatic dressing and compensation
Headstock spindle is supported by 4 bushing dynamic pressure bearing.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

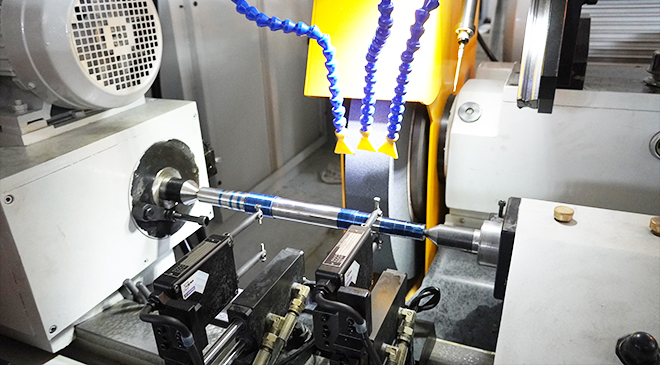

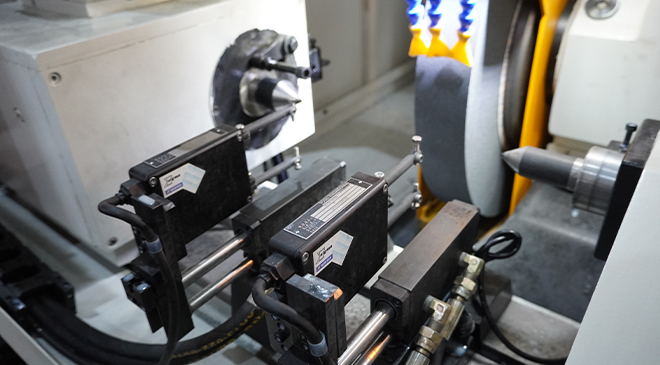

Diameter measuring instrument |
Grinding dia. scope Ø8-320 |

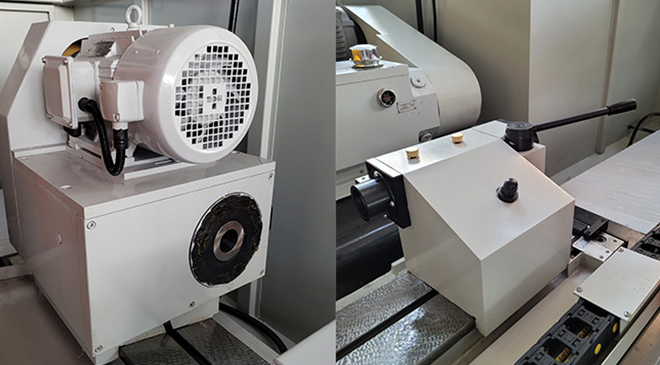

 Belt type headstock and manual tailstock |

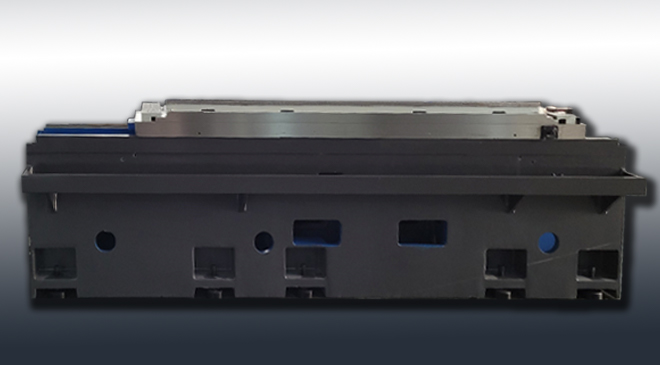

Hardening table and base |
| Description | Unit | MKE1332B | ||||
| Capacity | ||||||
| Dia. grinding of workpiece | mm | Ø8-320 | ||||
| Max. length grinding of workpiece | mm | 500 | 1000 | 1500 | 2000 | 3000 |
| Max. workpiece weight | kg | 150 | ||||
| Grinding head | ||||||
| Wheel Diameter x Width x Bore | mm | Ø600*75*Ø305 | ||||
Swivel range of worktable | ° | -3~+7° | ||||
| Rapid traverse speed | m/s | 38 | ||||
| Wheel speed | r/min | 1210/1433 | ||||
| Headstock | ||||||
| Workhead center taper | MT5 | |||||
| Workhead speed （standard belt type） | r/min | 26、52、90、130、180、260 | ||||
| Workhead speed （optional inverter type） | r/min | 25-220 | ||||
| Tailstock | ||||||
| Tailstock center taper | MT4 | MT4 | MT4 | MT5 | MT5 | |
| Sleeve travel | mm | 28mm | ||||
| X/Z Axis | ||||||
| X axis servo motor | Nm | 23 | ||||
| Z axis servo motor | Nm | 15 | 15 | 15 | 23 | 5.5 |
| Max. rapid feedrate | r/min | 10 | ||||
| Min. Resolution | 0.001 | |||||
| Other | ||||||
| Total motor power | Kw | 21 | 21 | 21 | 30 | 33 |
| Machine weight | kg | 4,000 | 4800 | 5800 | 7800 | 9800 |
| Machine size | mm | 4000x2350x2150 | 4450x2350x2150 | 5600x2350x2150 | 7600x2350x2150 | 8600x2350x2150 |
Standard Configuration:
Siemens 808D control system
wheeel dresser
wheel hub
balancing arbor
wheel extractor
magnetic separator
Diameter measuring instrument 1 set
Optional Configuration:
Wheel balancing stand
open type steady rest
surface measuring instrument
Fanuc 0i TF control system
Siemens 808D control system
wheeel dresser
wheel hub
balancing arbor
wheel extractor
magnetic separator
Diameter measuring instrument 1 set
