DFM-1500-4 Multi-spindle VMC

4 spindles Vertical Machine Center INQUIRY

●4Z axis independent servo control,independent correction workpiece position and size deviation.

●4Z axis is gantry type for better rigidity and stability.

●Hidden and  fully closed  chain disc magazine with capacity of 20 tools for each magazine.

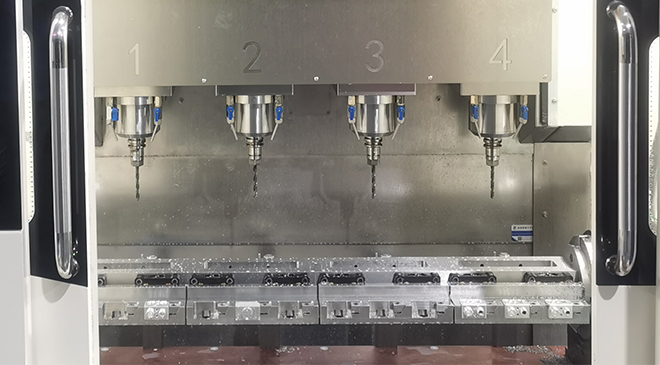

●Use BT30 high speed motor spindle, 4-spindle can be milling, cutting, drilling, tapping and other machining.

●The machine is smaller space and more effective capacity than single spindle.



PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING

mineral casting stand

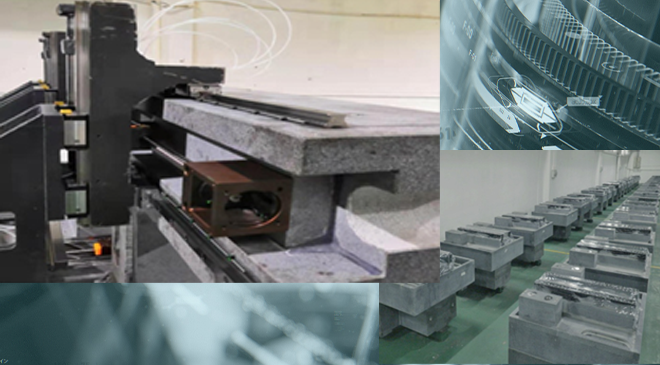

mineral casting stand

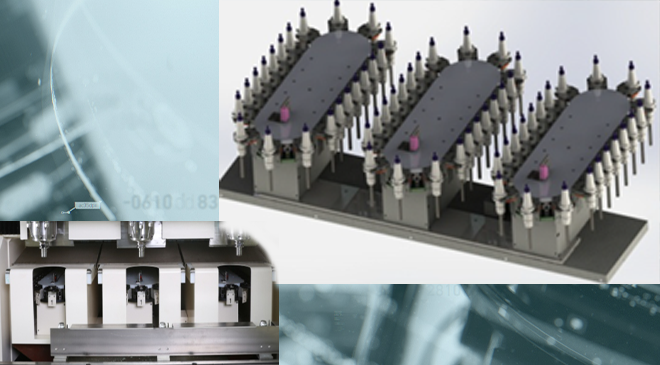

capacity of 20 tools for each magazine

capacity of 20 tools  and tool positioning probe for each magazine

4 rotary and swivel 5-axis tables

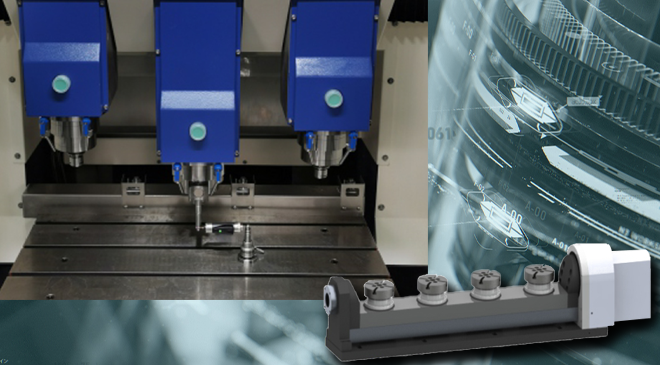

Optional :4 rotary and swivel 5-axis tables


4 axis-high speed 30000 rpm spindle

4 axis-high speed 30000 rpm spindle








Technical     InformationDFM-1500-4
X axis   traverse300
Y axis   traverse400
Z1/Z2/Z3/Z4   axis traverse300
Table   size1200*400mm
Max   table load300kg
Position   Accuracy±0.005mm/300mm
Reposition   Accuracy±0.005mm/300mm
Spindle   taper boreBT30
Distance   between centers of spindles300mm
Distance   between tool holder and table120-420mm
Chain   magazine4*20 pcs
Rapid   speed 20000 mm/min
Feeding   speed1-15000 mm/min
Tool   changingpneumatic
Spindle   coolingwater cooling
Servo   motor X/Y/Z1.3kw*3kw*0.75kw
Rated   power11kw
Spindle   Speed30000 rpm
Rated   torque8.1 Nm
Rated   voltageAC 380V
Total   power54 kw
Total   Weight6500 kg


STANDARD CONFIGURATION:
SNYTEC control system
Magazine 4x 20 tools
Spindle cooling system
Manual pulse generator
Lubricating system
Cutting fluid circulation tank
Electric cabinet
Tool positioning probe
Chip remover





Optional CONFIGURATION:
4 spindle/multiple 5 axis station
Threading capability
Oil mist separation system
Customized spindle power/speed/torque
Filtering system with filters

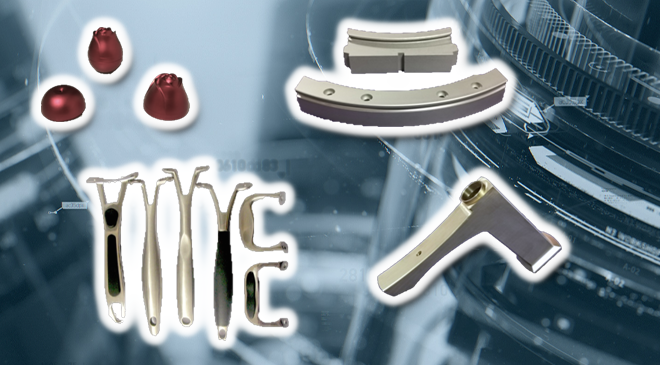

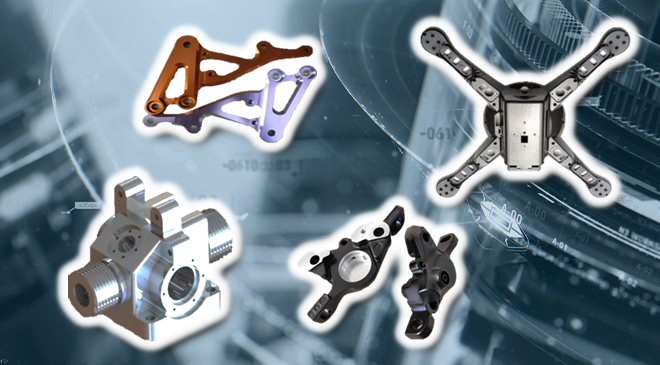

DFM-1500-4 Multi-spindle VMC Samples-1       DFM-1500-4 Multi-spindle VMC Samples-2

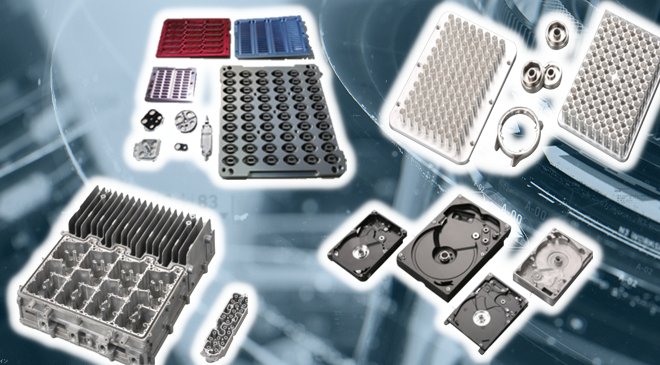

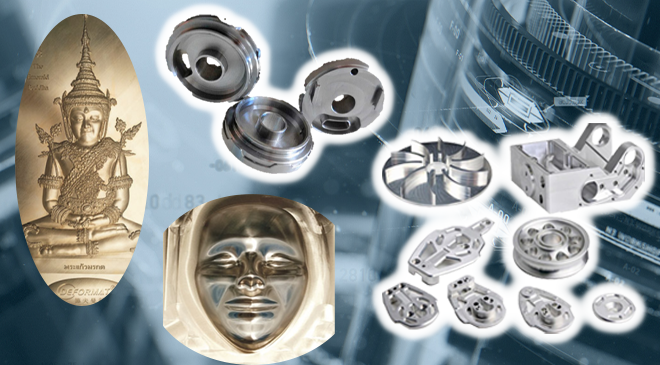

DFM-1500-4 Multi-spindle VMC Samples-3       DFM-1500-4 Multi-spindle VMC Samples-4
