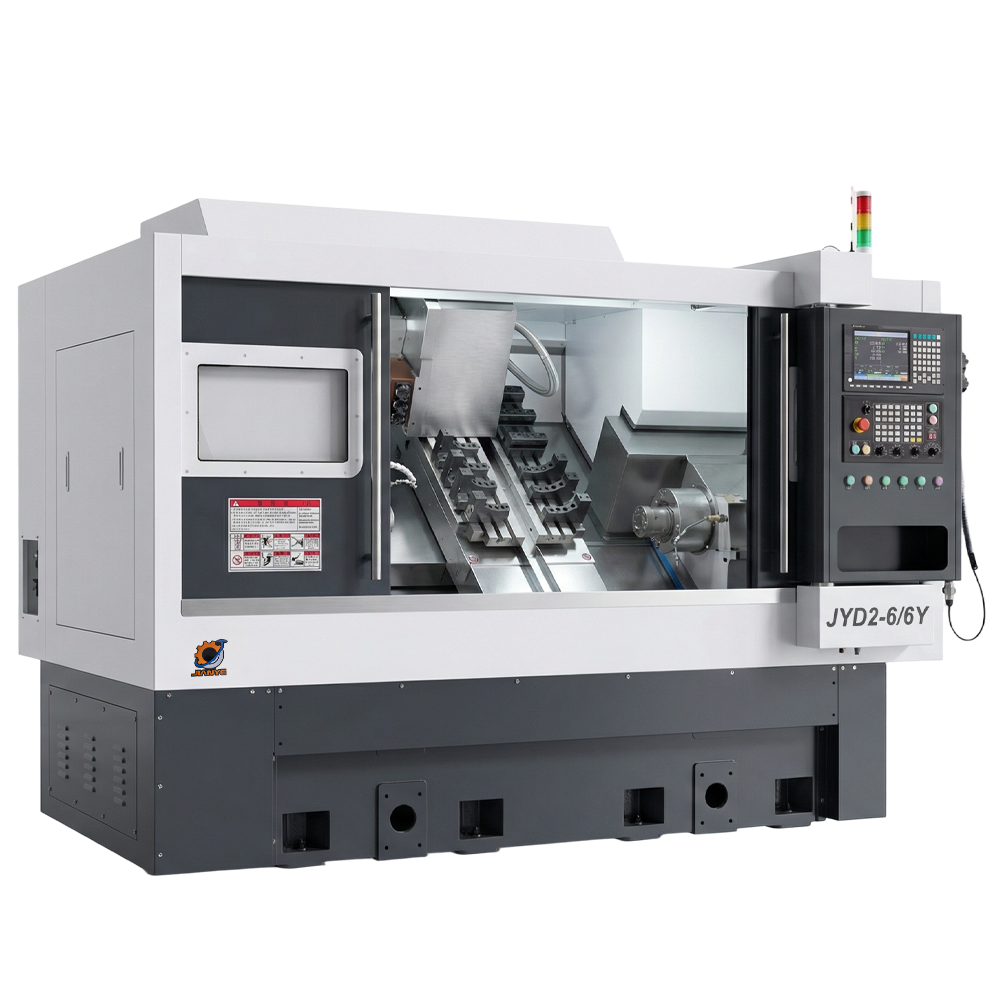

●Consists of two movable spindles.
●Dual-channel design significantly improves productivity.
●Spindle and back spindle each have an independent tool plate, enabling simultaneous front and back machining to reduce cycle time.
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

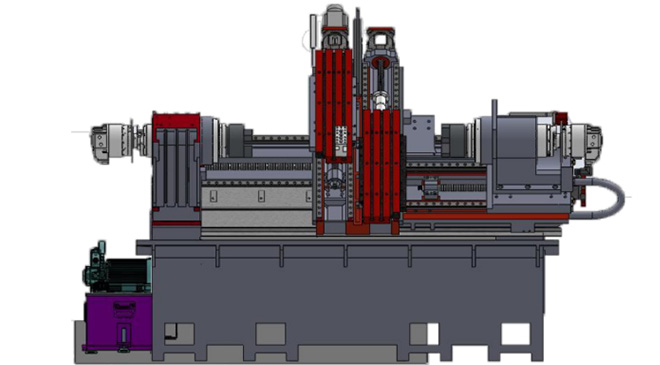

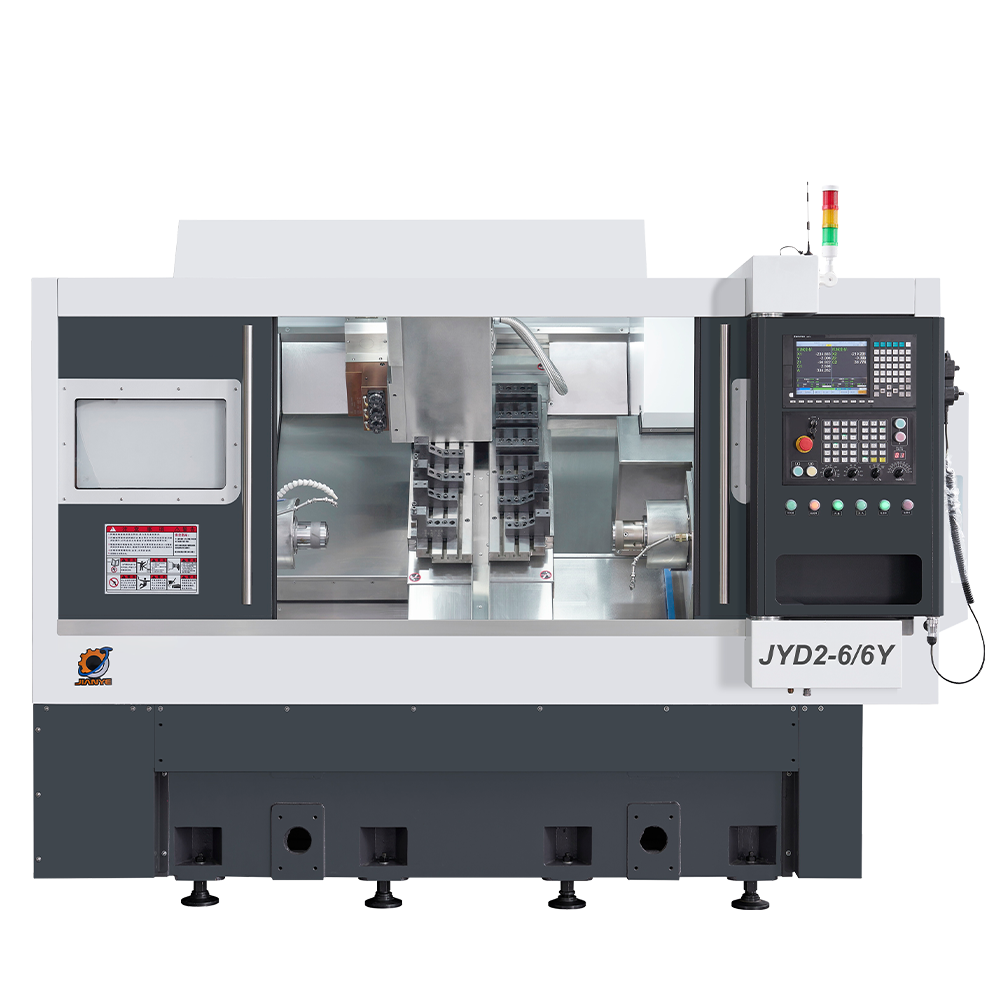

Dual spindle, each have an independent tool carrier |

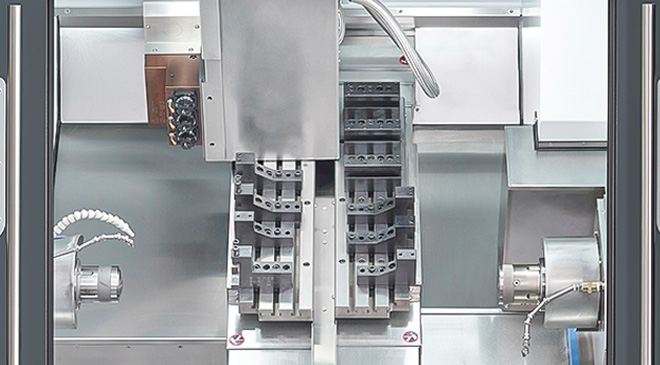

Optional driven tools on Y-axis |

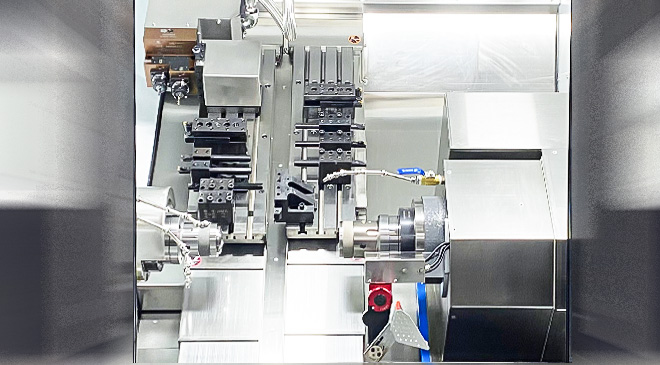

Options: couple driven tools and parts catcher |

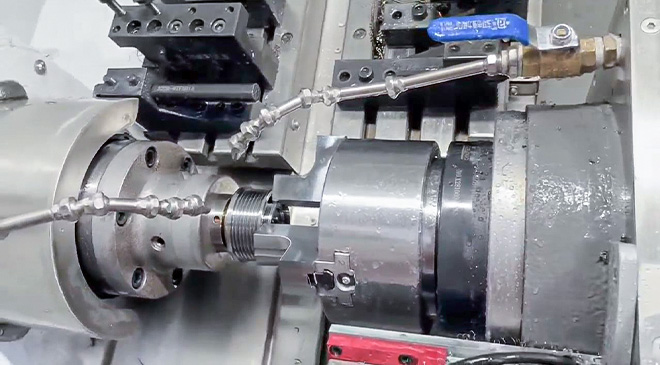

1st and 2nd spindle rotate docking, realize double side machining processes in single clamping |
| JYD2-6/6P | |||
| Max.turning diameter | mm | Φ160 | |
| Max.machining length | mm | 120 | |
| Max.swing diameter over bed | mm | Φ200 | |
| Max.swing diameter over slide | mm | Φ70 | |
| Bar feeding diameter | mm | <Φ46 | |
| Spindle bore | mm | Spindle-1 :Φ56;Spindle-2:Φ56 | |
| Max.spindle speed | rpm | Spindle-1:5000;Spindle-2:5000 | |
| X axis travel | mm | X1:1200 | X2:1200 |
| Z axis travel | mm | Z1:300 | Z2:200 |
| Rapid feedrate | M/min | 22 | |
| Voltage (3phase) | 380V±10% | ||
| Frequency | Hz | 50 | |
| Power | kW | 31 | |
| Machine weight | kg | 4000 | |
| Machine size L×W×H | mm | 2950×1800×2000 | |
| JYD2-6/6P | |||
| Max.turning diameter | mm | Φ160 | |
| Max.machining length | mm | 120 | |
| Max.swing diameter over bed | mm | Φ200 | |
| Max.swing diameter over slide | mm | Φ70 | |
| Bar feeding diameter | mm | <Φ46 | |
| Spindle bore | mm | Spindle-1 :Φ56;Spindle-2:Φ56 | |
| Max.spindle speed | rpm | Spindle-1:5000;Spindle-2:5000 | |
| X axis travel | mm | X1:1200 | X2:1200 |
| Z axis travel | mm | Z1:300 | Z2:200 |
| Rapid feedrate | M/min | 22 | |
| Voltage (3phase) | 380V±10% | ||
| Frequency | Hz | 50 | |
| Power | kW | 31 | |
| Machine weight | kg | 4000 | |
| Machine size L×W×H | mm | 2950×1800×2000 | |
Standard configuration:
SYNTEC 22TB control system
Servo motor and drive
Motor spindle
10pcs tool post
Hydraulic collet chuck
Cooling pump
Automatic lubrication
Optional configuration:
Automatic bar feeder
Automatic chip conveyor
High pressure water pump
Oil mist collector
Oil-water separator
Autmatic tool setting gauge
Parts receiver
Couple live tool on Z-axis
Y-axis live tool
