VMK324 vertical grinder

INQUIRY

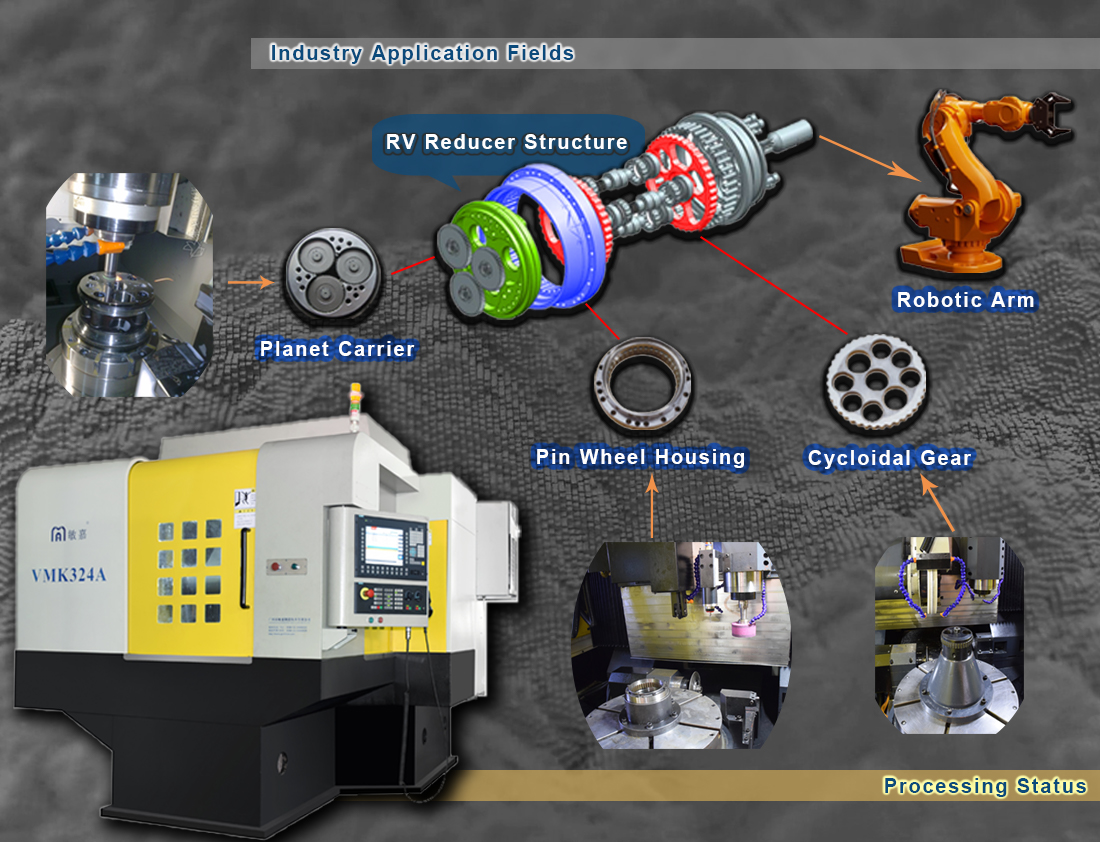

●Grinding internal/external straight tooth,end face ,such as RV reducer Inner gear , Indexing round table tooth,4th rotary table flange.

●Use disc diamond wheel,and let Y/Z Interpolation dressing.

PRODUCT INTRODUCTION
  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION
  • SAMPLE MACHINING















CapacityWorktable   diametermmØ500
Min. Internal Grinding diametermmØ80
Max.Internal grinding lengthmm300
worktable bearing weight kg750

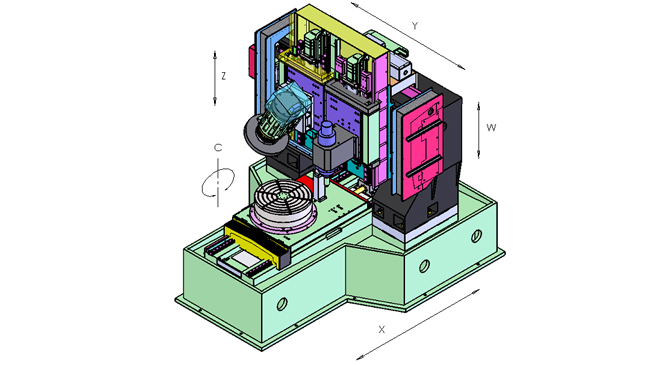

Axis X/Z/W/Y travelmm750/350/350/550
Rapid feed ratemm/min10000
Workpiece spindleMotor torqueNm319
C axisMax. spindle   speed rpm75
External grinding   wheel spindleMax. spindle   speedrpm3500
Motor powerkW7.5
Maximum allowable thickness of CBN   grinding wheelmm1-400*(20-32)*127
Internal grinding   wheel spindleMax. spindle   speedmin-115000
Motor powerKw20KW
Machine size Machine   size(L*W*H)mm2600*2700*2500
Machine weightT12


STANDARD CONFIGURATION:
Siemens 828D contrl system.
Spindle cooling system.
Automatic lubrication system.
Hydraulic system.
Air condition cabinet
Oil mist absorber
Compressed air dryer
Cutting fluid filtration system
magnetic workatable
