●It is high rigidity 45°slanted casting bed and triangle headstock for user-friendly design.
●Two axis move by the linear guideway
●High-power servo spindle motor
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING
Machine tool structure diagram |

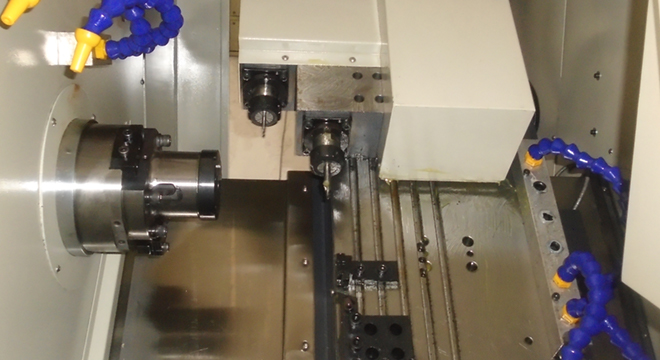

Add power head for drilling and milling |

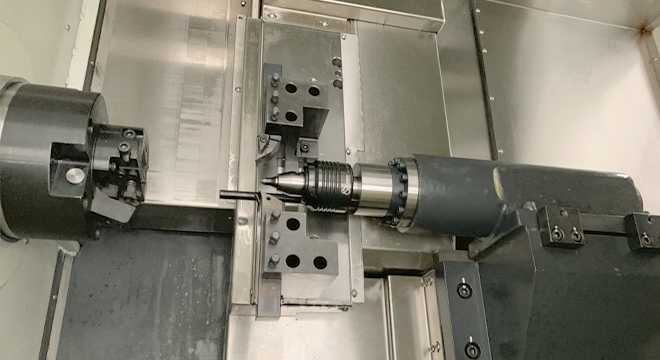

Special fixture | |
| Model | AL320T | AL320P | AL40P | |
| Capacity | ||||
| Max. turning diameter over bed | mm | φ320 | φ320 | φ320 |
| Max. turning diameter over support | mm | φ120 | φ120 | φ115 |
| Max. machining length(shaft type) | mm | 250 | 250 | 250 |
| Spindle | ||||
| spindle bore without draw-tube | mm | φ52 | φ52 | φ52 |
| spindle bore with draw-tube | mm | φ42 | φ42 | φ42 |
| Max. spindle speed | rpm | 3500 | 4500 | 3500 |
| Power of spindle motor | KW | 5.5/7.5 | 5.5/7.5 | 7.5 |
| Travel | ||||
| X/Z axis motor | Nm | 8/12 | 8/12 | 6/6 |
| X/Z axis rapid feed | m/min | 18 | 12 | 18 |
| X/Z axis travel | mm | 180/300 | 400/250 | 400/250 |
| Tailstock | ||||
| Diameter of quill | mm | 90 | / | / |
| Tailstock quill stroke | mm | 115 | / | / |
| Travel of Tailstock | mm | 280 | / | / |
| Tailstock taper | MT3 | / | / | |
| Others | ||||
| Type of tool post | Tool turret | Gang tool post | Gang tool post | |
| Number of tool | QTY | 8 | 6-8 | 6-8 |
| Size of tool | mm | 25×25/φ30 | 25×25/φ30 | 25×25/φ30 |
| T-solt | mm | / | 10×16×7 | 10×16×7 |
| Hydraulic chuck | inch | 6/8 | 6/8 | 6/8 |
| Total power | KW | 14 | 10 | 15 |
| Machine size(L×W×H) | mm | 1950×1340×1620 | 1950×1340×1620 | 2200×1460×1750 |
STANDARD CONFIGURATION：
GSK988T control system and AC servo motor.
Hydraulic 3-jaw chuck.
Solid hole rotary cylinder.
Cooling system.
Automatic lubrication system.
Cabinet heat exchanger.
Enclosed guard.
Hydraulic tailstock
OPTIONAL CONFIGURATION：
Collet chuck.
Hollow hole rotary cylinder.
Hydraulic tailstock.
Hydraulic fixture.
Siemens 808D control system.
Fanuc 0i-mate TD control system.
Chip conveyor.
GSK988T control system and AC servo motor.
Hydraulic 3-jaw chuck.
Solid hole rotary cylinder.
Cooling system.
Automatic lubrication system.
Cabinet heat exchanger.
Enclosed guard.
Hydraulic tailstock
