AL20D CNC Lathe Mahine

-High Speed INQUIRY

●The machine can be machining small size shaft and complex disc spare part .

●The workpiece spindle adopt motor spindle , Max speed is 6000r/min




PRODUCT INTRODUCTION

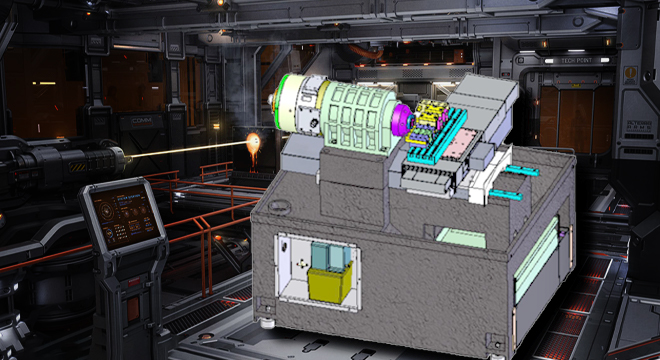

  • FEATURES
  • TECHNICAL SPECIFICATION
  • CONFIGURATION

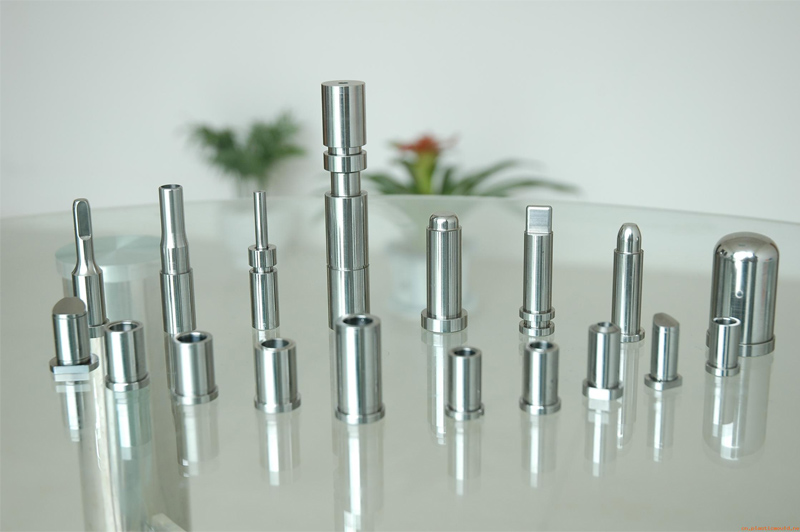

  • SAMPLE MACHINING

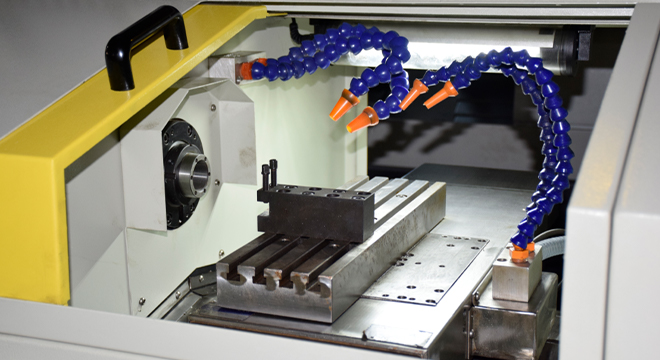

Gang tool post
















Model
AL20D
Capacity

Max. turning diameter over   bed                                 mmφ300
Max. turning diameter over   supportmmφ70
Max.cutting diameterDisc typemmφ300
Max.machining workpiece   diameterShaft typemmφ20
Spindle

Type of spindle head
MT5
Spindle bore without   draw-tube                                mmφ21
Max. spindle   speed                                                  rpm50-6000
Power of spindle motor                                           KW3.7
Travel

X/Z axis travelmm260/210
X/Z axis rapid feed                                               m/min24
X/Z axis motor                                                      Nm4/8
X/Z axis positioning   accuracy                                 mm0.010
X/Z axis repeatability   positioning accuracy            mm0.006
Tool

Number of tool                                                       Qty5
Size of tool                                                           mm16×16/φ20
Others

Pneumatic collect chuck mm20
Total powerKVA10
WeightKG1200
Machine size(L×W×H) mm1230×1115×1515


STANDARD CONFIGURATION:
FANUC 0i-MATE TD
Motor spindle
Cooling system
Automatic lubrication system
Pneumatic collect chuck
Gang tool post
Chip box
Enclosed cabinet
Working lamp

OPTIONAL CONFIGURATION:
Siemens 808D control system
GSK988T control system
