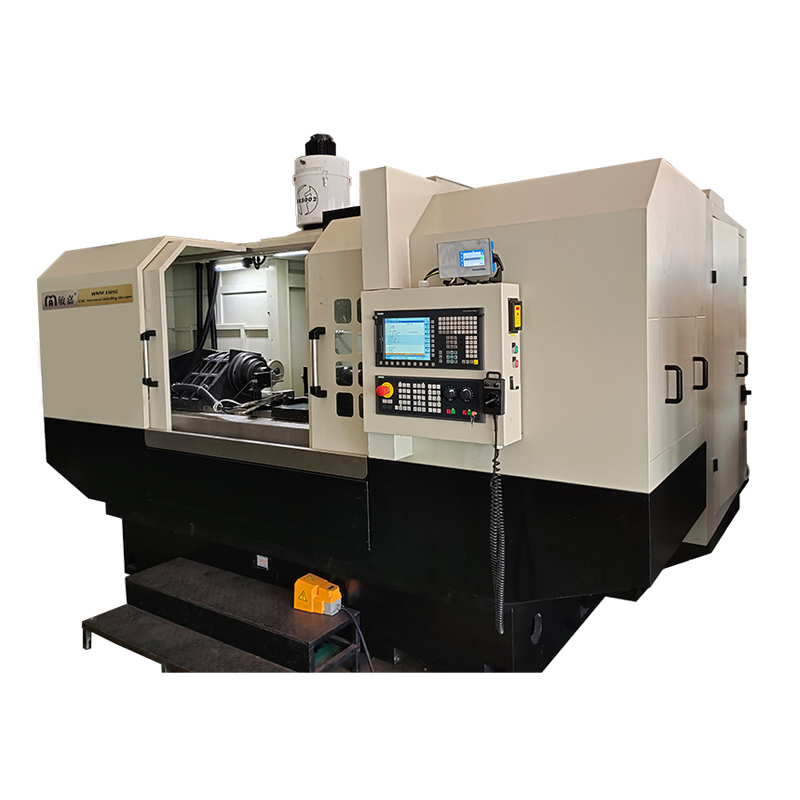

●High rigid "T "structure bed.
●Two axis move by the linear guideway.
●Two spindles are respectively controlled on same direction .
PRODUCT INTRODUCTION
- FEATURES
- TECHNICAL SPECIFICATION
- CONFIGURATION
- SAMPLE MACHINING

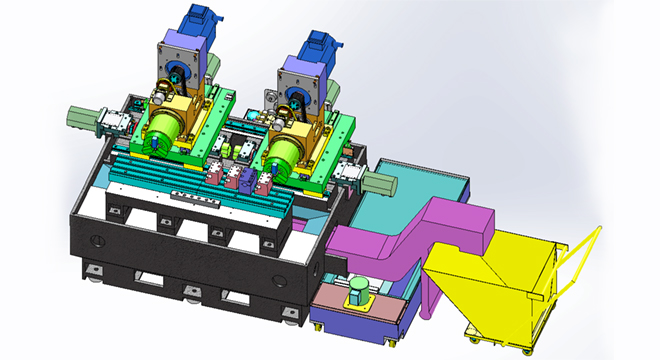

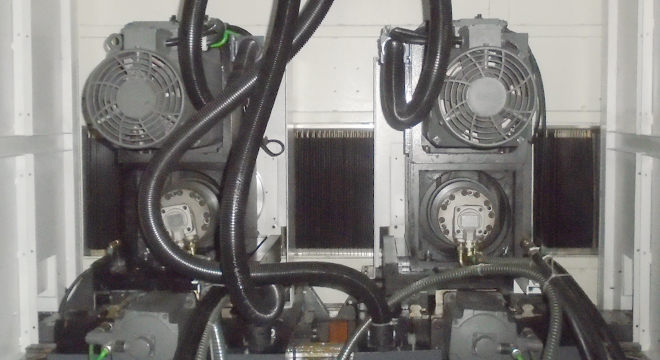

Double spindle structure diagram |
Double spindle structure diagram1 |

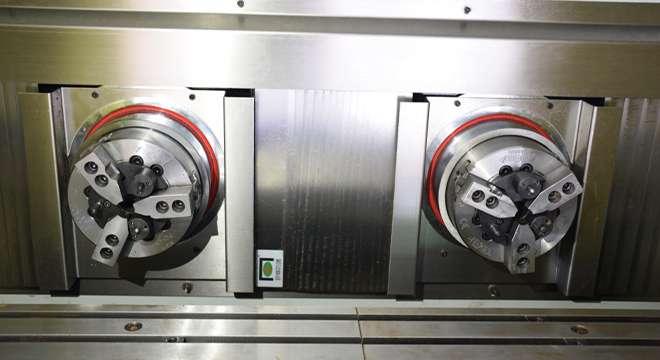

Two spindles work independently | |
| Model | HF402 | |
| Capacity | ||
| Max. turning diameter over bed | mm | 400 |
| Max. turning diameter over support | mm | 600 |
| Max. machining length | mm | 150 |
| Spindle | ||
| Type of spindle head | A2-6 | |
| Spindle bore with draw-tube | mm | 43 |
| Spindle bore without draw-tube | mm | 52 |
| Max.spindle speed | r/min | 3000 belt/ 5000 motor spindle |
| Power of spindle motor | KW | 7.5*2 |
| Hydraulic chuck | inch | 6/8 |
| Travel | ||
| X/Z axis travel | mm | 350/150 |
| X/Z axis rapid feed | m/min | 15 |
| Power of X/Z axis motor | Nm | 10 |
| X/Z axis positioning accuracy | mm | 0.022 |
| X/Z axis repeatability accuracy | mm | 0.006 |
| Tool | ||
| Number of tool | Qty | 6*2 |
| Size of tool | mm | 25×25/φ32 |
| Others | ||
| Weight | KG | 2700 |
| Machine size(L×W×H) | mm | 2700×2050×1800 |
STANDARD CONFIGURATION：
GSK988T control system
Motor spindle of workpiece spindle
Coolant system
Gang tool post
Cabinet heat exchanger
Automatic lubrication system
Dia. 8″hydraulic chuck
Enclosed guard
OPTIONAL CONFIGURATION：
Simens 828D
Hollow hole rotary cylinder
Automatic chip converyor
Specialized fixture
Power head
Motor spindle
GSK988T control system
Motor spindle of workpiece spindle
Coolant system
Gang tool post
Cabinet heat exchanger
Automatic lubrication system
Dia. 8″hydraulic chuck
Enclosed guard
OPTIONAL CONFIGURATION：
Simens 828D
Hollow hole rotary cylinder
Automatic chip converyor
Specialized fixture
Power head
Motor spindle
