Large pipe fittings are critical components in industrial piping systems, hydraulic assemblies, and heavy machinery. Because of their size, weight, and functional requirements, these parts often cannot be completed efficiently in a single CNC setup.

This article presents a real production case in which two L35H horizontal turn-mills are used to complete sectional machining of a large pipe fitting. By dividing the process into two clearly defined machining sections, both productivity and machining stability are significantly improved.

Why Large Pipe Fittings Require Two-Stage CNC Machining

Large-diameter pipe fittings typically involve thick walls, complex functional surfaces, and strict dimensional requirements. Attempting to complete all operations in one setup can introduce risks such as unstable clamping, excessive tool load, or compromised accuracy.

A two-stage machining strategy allows manufacturers to:

• Assign different machining objectives to each process stage

• Maintain optimal rigidity and workpiece positioning

• Optimize cutting parameters for different features

• Improve overall consistency in batch production

This approach is widely used in professional CNC workshops handling heavy or oversized components.

Section A Machining on L35H Horizontal Turn-Mill

In Section A, the first L35H machine focuses on the primary machining area of the pipe fitting. Typical operations include outer diameter turning, facing, and preparation of reference surfaces required for subsequent processes.

The rigid structure of the L35H horizontal turn-mill ensures stable cutting performance when handling heavy castings or forgings, making it well suited for this initial machining stage.

Section B Machining on L35H Horizontal Turn-Mill

Once both machining stages are completed, the pipe fitting meets the required dimensional and functional specifications. The two-stage process ensures balanced material removal, consistent surface quality, and reliable repeatability for industrial production.

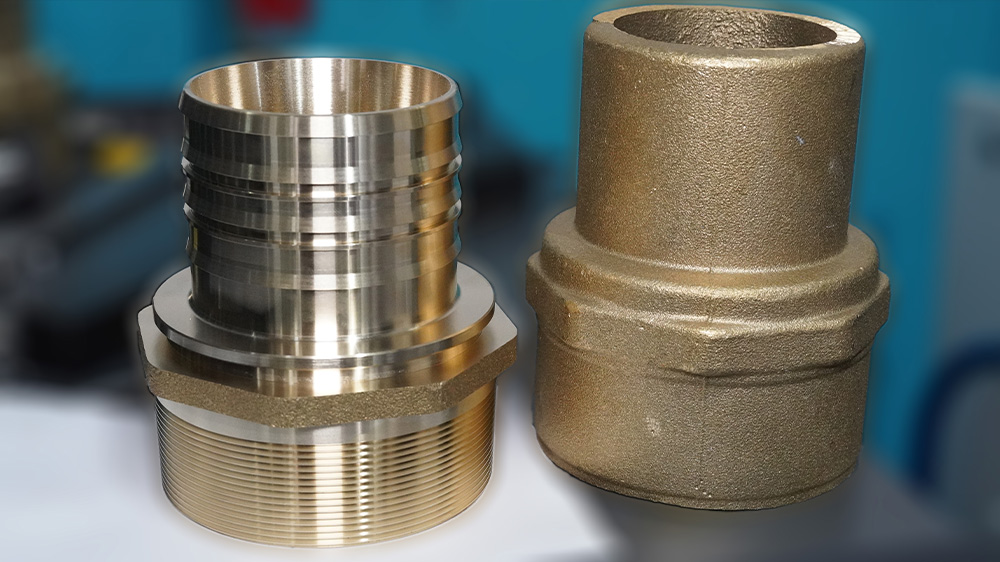

Complete Pipe Fitting After Two-Stage CNC Machining

Once both machining stages are completed, the pipe fitting meets the required dimensional and functional specifications. The two-stage process ensures balanced material removal, consistent surface quality, and reliable repeatability for industrial production.

Advantages of Using L35H for Sectional Pipe Fitting Machining

The L35H horizontal turn-mill is particularly suitable for sectional machining strategies due to its combination of rigidity, turning-milling capability, and stable performance with large workpieces.

Key advantages include:

• High structural stiffness for heavy parts

• Reliable turning performance for large diameters

• Flexibility to support multi-stage machining workflows

• Consistent accuracy in medium- to high-volume production

In conclusion

Two-stage CNC machining is a deliberate and proven process strategy for large pipe fittings. By using two L35H horizontal turn-mills, manufacturers can divide complex machining tasks into manageable sections, resulting in higher efficiency, improved stability, and predictable machining quality.

This real production example demonstrates how proper process planning and suitable machine selection play a critical role in large-part CNC manufacturing.
